TUNA (TUNnel Analysis)


TUNA is a fully automated computer program developed for TUNnel Analysis. The program is written by the professional engineer with more than 20 years of experience in tunnel analysis.

TUNA employs a static, two-dimensional, linear elastic finite element method. Pre- and post-processors are built-in so that only the physical geometries and material properties associated with a proposed tunnel are required as input and graphical otput can be obtained directly through dot matrix/laser printers or high resolution plotters.


Features

  • Liner-medium interaction
  • English and Metric units
  • Shallow and deep buried tunnels
  • Multi-layered geological medium

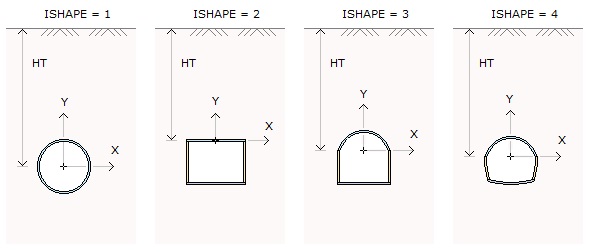

  • Circular, rectangular and horseshoe shape tunnels
  • Plain concrete, steel plate, reinforced concrete and composite integral liners
  • Excavation and live loads
  • Lined and unlined tunnels

Output Data


The following graphical output can be displayed on the screen or printed through the hardcopy device:

  • Tunnel deformed shape
  • Principal stress in soil/rock

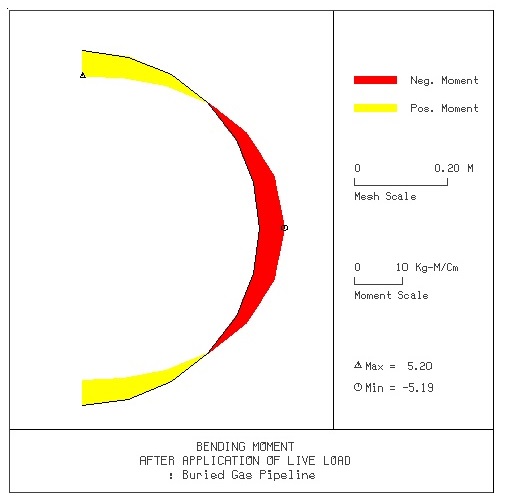

  • Bending moment, thrust, extreme fiber stresses and strains in the liner
  • Stresses and strains in the reinforcing bars
